Performance

Maximum speed: 320 knots (366 mph, 592 km/h) at 20,000 ft (6,060 m)
Cruise speed: 292 kts (336 mph, 540 km/h)
Range: 2,050 nmi (2,360 mi, 3,800 km)
Service ceiling: 33,000 ft (10,060 m) empty;[83] 23,000 ft (7,077 m) with 42,000 pounds (19,090 kilograms) payload ()
Rate of climb: 1,830 ft/min (9.3 m/s)
Takeoff distance: 3,586 ft (1,093 m) at 155,000 lb (70,300 kg) max gross weight;[82] 1,400 ft (427 m) at 80,000 lb (36,300 kg) gross weight[84]

Avionics - Westinghouse Electronic Systems (now Northrop Grumman) AN/APN-241 weather and navigational radar[85]

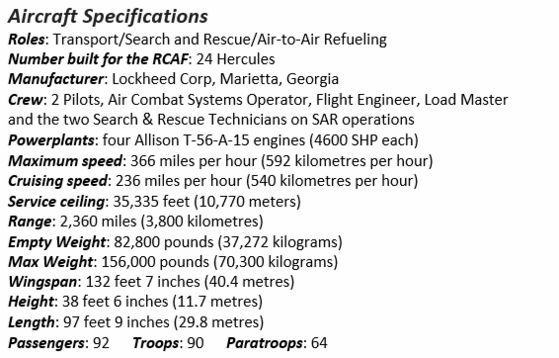

General Characteristics

Crew: five (two pilots, navigator, flight engineer and loadmaster)
Capacity:

C-130 cargo hold: length, 40 feet (12.19 m); width, 119 inches (3.02 m); height, 9 feet (2.74 m). Rear ramp: length, 123 inches (3.12 m); width, 119 inches (3.02 m)
92 passengers or
64 airborne troops or
74 litter patients with 5 medical crew or
6 pallets or
2–3 Humvees or
2 M113 armored personnel carriers

Payload: 45,000 lb (20,400 kg)
Length: 97 ft 9 in (29.8 m)
Wingspan: 132 ft 7 in (40.4 m)
Height: 38 ft 3 in (11.6 m)
Wing area: 1,745 ft² (162.1 m²)
Empty weight: 75,800 lb (34,400 kg)
Useful load: 72,000 lb (33,000 kg)
Max. takeoff weight: 155,000 lb (70,300 kg)
Powerplant: 4 × Allison T56-A-15 turboprops, 4,590 shp (3,430 kW) each
Propellers: 4 propellers

Propeller diameter: 13.5 ft (4.1 m)

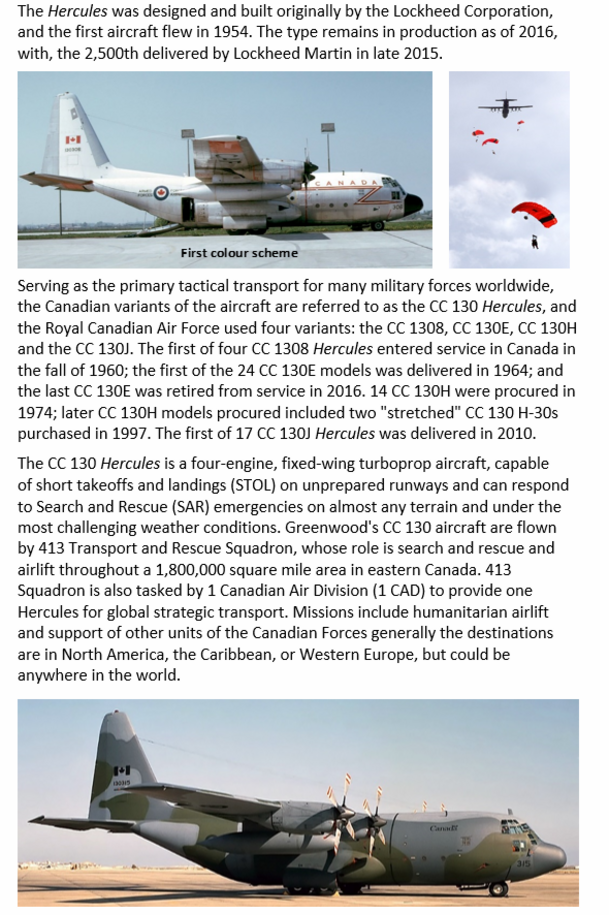

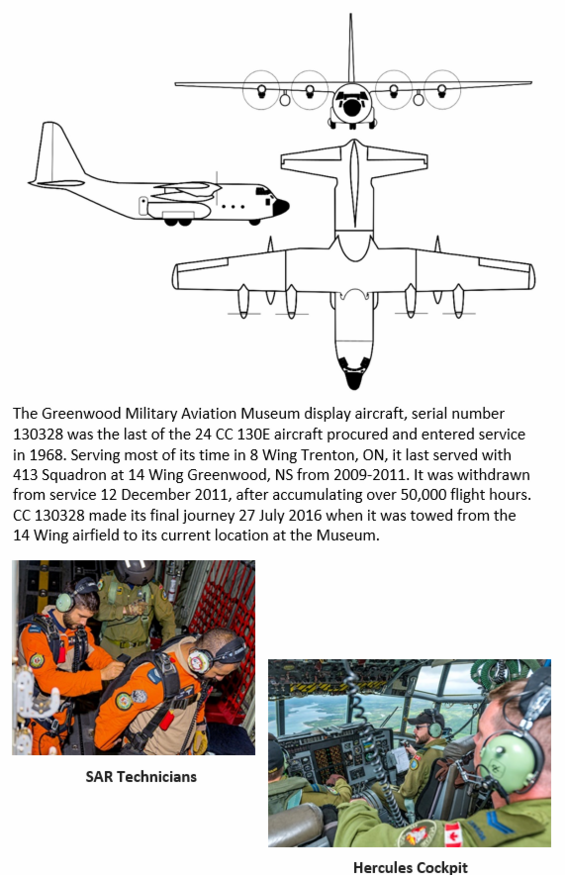

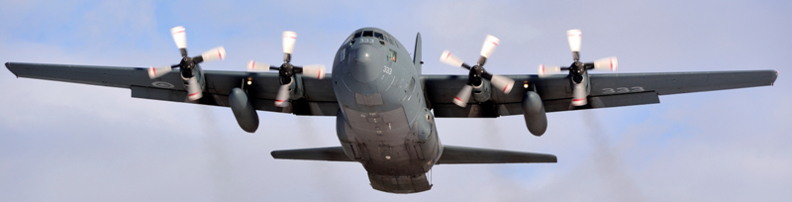

The first CC-130 Hercules entered service in Canada in 1960. The Hercules is a four-engine fixed-wing turboprop aircraft that can carry up to 78 combat troops. It is used for a wide range of missions, including troop transport, tactical airlift (both palletized and vehicular cargo), search and rescue (SAR) and aircrew training. The Hercules has a maximum range of 7,222 kilometres (4,488 miles) and a cruising speed of 556 kilometres per hour (345 miles per hour). Capable of short takeoffs and landings (STOL) on unprepared runways, it can respond to SAR emergencies on almost any terrain and under the most challenging weather conditions. It can also transport troops and equipment in support of humanitarian aid operations conducted by the Canadian Forces (CF) Disaster Assistance Response Team (DART). The Museum's Hercules was flown by 413 Search & Rescue Squadron here in Greenwood.

CC130 Hercules

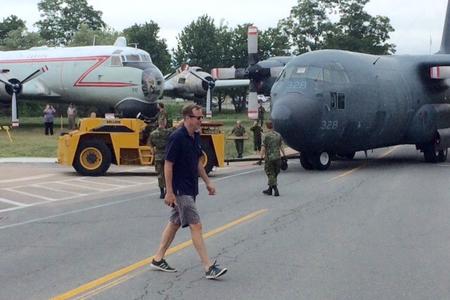

The Museum's Hercules was moved to the Air Park in the summer of 2016. Article
